Forte 3DWorx (formerly CADWorx Plant Professional)
Forte 3DWorx (formerly CADWorx Plant Professional) projects can be leveraged forward into larger Smart 3D projects, giving you the ability to deliver intelligent models for multiple client sites with a single tool.
All Forte 3DWorx products can use either AutoCAD® or Octave BricsCAD® as their CAD platform. Operating in a native DWG common data environment, Forte 3DWorx workflows are executed in seamless coordination with all disciplines including BIM, Mechanical, Electrical, and Civil.
What is Forte 3DWorx (formerly CADWorx Plant Professional)
Forte 3DWorx is an integrated and complete software for 2D process and 3D plant design, providing intelligent drawing and database connectivity, advanced levels of automation, and easy-to-use drafting tools.
Comprehensive design tools for P&ID schematic creation, 3D piping, equipment and structural modeling, model visualisation and design review, automatic isometrics and bills of material generation are available in a single solution.
Overview
Why use CADWorx Plant Professional?
Forte 3DWorx (formerly CADWorx Plant Professional) includes the most complete range of tools for efficient DWG-based 3D plant design. The software is quick and easy to set up and use, so you can start designing right away. Thousands of companies are benefiting from this powerful yet scalable solution.
For projects that require accuracy and need to adhere to timing and budget constraints, whilst delivering high quality results, Forte 3DWorx provides unparalleled value.
Forte 3DWorx design models have bi-directional data interoperability with Octave’s engineering calculation tools for Aspect Pipe Stress (Formerly CAESAR II), Aspect Pressure Vessel (Formerly PV Elite) and Aspect Structure (formerly GT STRUDL). This allows for a LEAN workflow, reducing duplication of effort among the engineering teams and eliminating the risk of errors in a manual transcription workflow.
Forte Isogen™ the industry standard for automatic piping isometric drawing generation, which is an integral part of the product, and key differentiator compared to similar DWG-based products, provides fabrication drawing and report automation.
CADWorx projects can be leveraged forward into larger Smart 3D projects, giving you the ability to deliver intelligent models for multiple client sites with a single tool. All CADWorx products can use either AutoCAD® or BricsCAD[PM1] ® as their CAD platform. Operating in a native DWG common data environment, CADWorx workflows are executed in seamless coordination with all disciplines including BIM, Mechanical, Electrical, and Civil.
Who uses Forte 3DWorx (formerly CADWorx Plant Professional)?
Forte 3DWorx (formerly CADWorx Plant Professional) is a comprehensive software package designed for plant design and engineering. It is widely used in industries such as oil and gas, petrochemical, water treatment, and power generation for designing and modeling complex plant structures.
Since its introduction, Forte 3DWorx (formerly CADWorx Plant Professional) has revolutionized the plant design industry with its ease of use, flexibility, interconnectivity, and scalability. The software has helped thousands of companies create revenue-earning deliverables quicker and more accurately, and is commonly used by:
- Plant designers working for EPCs or design firms, working on greenfield and/or brownfield projects.
- Site-based engineering teams who conduct small brownfield projects in-house.
- Designers working on BIM projects where industrial type plant is part of the overall building design.
What Can You Do With Forte 3DWorx?
During the O&M phase of the lifecycle, it supports key Owner operator business processes and can be used to:
- Plan changes to the plant as part of an extension, upgrade/revamp, or a turnaround/shutdown.
- Execute small site-based engineering projects, executed by in-house teams.
- Create/update plant documentation (P&IDs, isos etc.) to reflect the as-built situation.
- Provide digital information, supporting…
- Risk-Based Inspection (RBI)
- Fitness-for-Service (FFS) (piping, pressure equipment, and structures)
- Projects executed by external contractors
- Creation of, or making updates to, Digital twins
Forte 3DWorx (formerly CADWorx Plant Professional) provides a
complete package of powerful and adaptive tools that enable quick and easy
creation of fully intelligent, accurate, high-quality 3D plant models for new
greenfield new-build plants, or to produce designs required to make
modifications to existing brownfield facilities.
The low administrative overhead required
for project setup and execution, along with the ability to reuse existing model
data, allows EPCs, design firms and owner operators, the ability to have a
quick turnaround supporting agile project execution.
Benefits of Forte 3DWorx
Forte 3DWorx offers a wide range of design tools that allow engineers to create detailed 3D plant models. These tools enable the design of piping, equipment, steel structures, and ductwork, among other plant components.
- Piping Design: Easily model complex piping systems with intelligent routing and a wide selection of industry-standard components.
- Equipment Design: Create accurate representations of plant equipment, including pumps, vessels, and tanks.
- Structural Design: Design steel and concrete structures with precision, ensuring structural integrity and compliance with standards.
- Automatic Piping Layout: assess various routes and choose the best layout via pipe auto-routing in three dimensions.
- Dynamic Model Updates: The software supports intelligent modeling, which allows users to create dynamic models that automatically update based on changes in design parameters. Editing tools – such as Change Size, Change Spec., and the self-aware nature of model objects – enable design changes to be made quickly, easily, and accurately, without undoing work already done, reducing errors, and saving time and effort.
- Integration with Engineering Analysis Tools: Forte 3DWorx offers seamless integration with various software applications, enhancing interoperability and collaboration across various stages of the design process. Exchange designs bi-directionally with Aspect Pipe Stress (Formerly CAESAR II) for pipe stress analysis, Aspect Pressure Vessel for pressure vessel analysis, and Aspect Structure for structural analysis.
- CAD Tools: Through External Referencing of design files, and automatic notifications when changes occur provided by the CAD platform, the software supports collaboration and communication among team members, improving project efficiency and reducing misunderstandings.
- Use AutoCAD or Octave BricsCAD as the CAD Platform: Allows users to leverage familiar CAD tools, workflows, and produce and share designs in industry standard DWG file format.
- Forte 3DWorx includes extensive libraries of industry-standard components and specifications, ensuring that designs comply with relevant standards and codes.
- Component Libraries: Access a vast library of piping, equipment, and structural components. Piping components based on industry specifications such as ASME, ANSI, DIN, and ISO.
- Specification-Driven Design: Create custom specifications and components to suit unique project requirements.
- Forte 3DWorx generates accurate bills of materials (BOM) and detailed reports, streamlining procurement and project management.
- Automatic BOM Generation: Automatically create BOMs based on the model, saving time, and reducing manual errors.
- Customizable Reporting: Generate customized reports from the model or a connected project database to meet specific project requirements.
- Industry standard Isogen [PM1] isometrics: The software includes Isogen, the defacto-standard for the automatic generation of piping isometrics.
- User-Friendly Interface: With its advanced features and intuitive interface, Forte 3DWorx enhances productivity and efficiency, reducing project timelines and costs. Working in a familiar CAD environment and designed for ease of use, the learning curve for inexperienced users is reduced to a matter of hours.
- Time-Saving Features: Automatic Pipe Routing, configurable piping rules, spec.-driven design, self-aware component behaviour, single click model update actions - such as Change Size, Change Spec. - all help to save time and streamline design workflows.
- Piping Rules: Prevent errors from being made as designs evolve, particularly those caused by inexperienced users, saving time, increasing quality, and reducing errors.
- Specification-based Design: Ensures compliance with industry standards and regulations, maintaining high-quality design and engineering practices.
- Clash Detection: In-built clash detection enables hard and soft collisions between components to be identified during the design process.
- Standards Compliance: Design in accordance with international standards and codes.
- Quality Control Tools: Correlation via the project database supports confirmation that inline components such as valves reside in both the 3D model and process design.
- Technical Support: Octave provides comprehensive technical support to assist users with troubleshooting, software updates, and best practices, ensuring that teams can fully leverage the software's capabilities.
- Training Resources: Users have access to a variety of training resources, including webinars, tutorials, and documentation, to help them maximize the benefits of Forte 3DWorx (formerly CADWorx Plant Professional). Free eLearning available via Octave Institute.
Forte 3DWorx (formerly CADWorx Plant Professional) is a powerful tool for plant design and engineering, offering a wide range of benefits that enhance accuracy, productivity, and collaboration. Its comprehensive features, integration capabilities, and user-friendly interface make it an ideal choice for professionals involved in plant design projects. By leveraging Forte 3DWorx (formerly CADWorx Plant Professional), organizations can streamline their design processes, improve project outcomes, and achieve greater efficiency and effectiveness in their engineering efforts.
Capabilities | |
|---|---|
Works on AutoCAD or Octave BricsCAD | Equipment library |
Intelligent process diagrams (via included Facets P&IDWorx (Formerly CADWorx P&ID Professional) | Basic ducting/cable trays |
Intelligent 3D piping and equipment modeling | Cross discipline clash detection & management |
Intelligent structure design (via included Octave Forte StructureWorx (Formerly CADWorx Structure) | Octave Isogen® isometrics |
True multi-discipline task-based modeling | Detailed bills of materials |
Specification-driven design | Display/Selection filtering |
Efficient specification creation and management | Model/P&ID synchronization |
Rule driven pipe modeling | Design review (via included Forte ReviewWorx (Formerly CADWorx Design Review) |
Live database links | Bi-directional links to stress analysis (Aspect Pipe Stress, Aspect Pressure Vessel) |
Dynamic pipe supports | As-built multi-discipline models from point clouds (when used in combination with CloudWorx) |
Key Features
CAD Platform
Choose AutoCAD or Octave BricsCAD as the CAD platform for Forte 3DWorx, it is your choice!
Pipe Modeling and
Auto-routing
Develop optimised piping layouts in record time using intuitive modeling echniques and
automatic pipe routing.
Equipment Modeling
Parametric-based
modeling makes creation of any type of equipment model simple and quick.
Alternatively, develop company standard equipment models based on templates, then
select from the equipment library and place into the 3D model.
Structural Steel Modeling
Intelligent routines speed the modeling of a wide range of structural steel models based on
international steelwork standards.
Reference Data Creation
Creation of catalog and project files in Forte 3DWorx Specification Editor ensures high quality component data is available for creation of accurate 3D models from
which deliverables such as the bills of materials are produced.
Piping Rules
In-built piping rules prevent design errors occurring and improve designer efficiency
and productivity whilst assuring accurate, quality of 3D models and
deliverables are produced.
Integration with Aspect Pipe Stress
Plant piping designers and pipe stress engineers benefit from time savings and greater accuracy by exchanging piping data bi-directional between Forte 3DWorx
Professional and Aspect Pipe Stress (Formerly CAESAR II), Octave’s solution for code-based pipe stress analysis.
Customer Success Stories
What is included
Each Forte 3DWorx (formerly CADWorx Plant Professional) license provides access to:
Forte 3DWorx (formerly CADWorx Plant Professional)
Help & Assistance
Unmatched Support
Troubleshoot your Forte 3DWorx issues with ease with our dedicated support team and plethora of support documents. Our team provides effective solutions based on extensive product usage and industry expertise.
Expert Training
Empower your team with Octave Institute, which contains our expert training programs as well as tips and tricks for improving your workflows across Octave products. Check out live webinars, detailed tutorials and personalized training sessions, ensuring your team is proficient and confident in using Forte 3DWorx to its full potential.
More Key Features
Productivity Tools

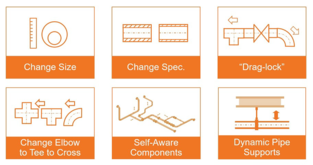

Forte 3DWorx offers several productivity tools – such as ChangeSize, ChangeSpec, “Drag-lock,” Convert Elbow to Tee etc. - that make design changes easy. These powerful tools enable designers to make modifications without having to undo work already done, avoiding wasted time and effort, whilst maintaining design intent.
P&ID vs. 3D Model Correlation
So that 3D designs are created accurately and consistently based on the 2D process design created in Facets P&IDWorx , Forte 3DWorx can be linked via the project database to the process design, enabling correlation between the logical 2D and physical 3D worlds to be performed.
Collision Detection

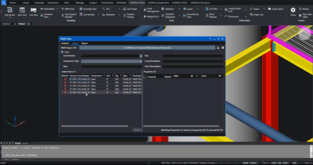

Forte 3DWorx offers clash detection and issue identification inside the 3D design environment. This ensures design errors are found and eliminated in the virtual world, where they are cheaper and easier to resolve, a crucial step before deliverables are generated from the 3D model and used to create the physical reality.
Model Visualisation and Review

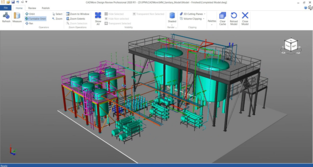

Enhancing collaboration between design teams and project stakeholders, 3D model visualisation, and review is possible using Forte ReviewWorx Review Professional.
Automatic Piping
Isometrics via Isogen

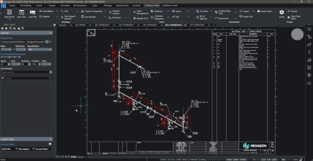

Bundled with, and an integral part of the solution, Octave Isogen is used to create accurate high-quality industry standard piping isometrics and bills of materials automatically from Forte 3DWorx 3D piping models.
Automatic Annotation of Orthographic Deliverables via OrthoGen
Orthogen for Forte 3DWorx, a separate add-on for Forte 3DWorx, automates the addition of dimensions, coordinates, match lines, labels and tags and other annotation to 2D layouts created from a Forte 3DWorx 3D model, saving considerable time compared to adding these details manually to create orthographic deliverables.
Integration with Aspect Pressure Vessel (Formerly PV Elite)

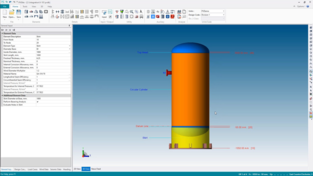

Plant equipment designers and vessel stress engineers benefit from time savings and greater accuracy by exchanging piping data bi-directional between Forte 3DWorx’s Equipment module and Aspect Pressure Vessel, Ocatave’s solution for code-based pressure vessel and heat exchanger analysis.
Dynamic Pipe Supports
When piping changes location or size, rather than delete and replace connected or associated pipe supports, it is possible in Forte 3DWorx to simply update their size and location automatically, using their dynamic update behaviour to make changes.
